ECOCORE's Brushless DC Permanent Magnet Motor Technology
Manufacturing process of high-quality DC permanent magnet brushless motors for solar water pumps.
No.1-1 Motor Coil
Wound by automatic wire inserting machine. All enameled wires are made of 180-degree high-temperature wires, and the stators are made of 600 cold-rolled silicon steel sheets.
No.1-2 Motor Coil
The coil after processing is subjected to turn-to-turn and withstand voltage tests. Qualified products are dipped in paint to increase the insulation and firmness of the coil.

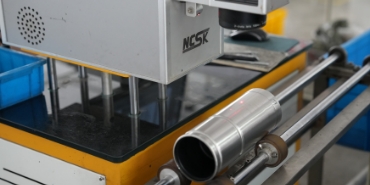

No.2 Laser Marking on Motor Barrel
After being checked by the quality inspector, laser marking is carried out according to the customer's requirements.
No.3 Install the Oil Sac and Press the Circlip Cover
Press-fits the motor circlip cover with fully automatic press-fitting equipment.
No.4 Coil Pressing Process
Motor coil press-fitting with precise positioning.
No.5 Motor Size Measurement
The size of each press-fitted motor is measured. After passing the test, the motor can be put into production.

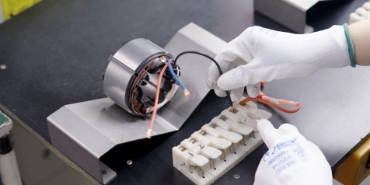

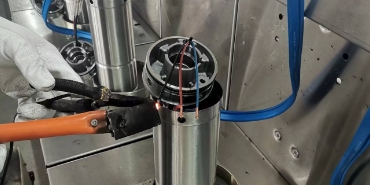

No.6 Motor Wiring
For the welding of the oil cylinder cable and the lead wire of the motor coil, double-walled tubes are used to protect the welding point with insulation.
No.7 Press-fitting of the Rotor
The rotor adopts 304 stainless steel shaft, which avoids the risk of broken shaft. The magnet is made of 40SH aluminum iron boron material, and the temperature resistance can reach 150 ℃.
No.8 Installing of the Mechanical Seal
The mechanical seal is made of silicon carbide impregnated with graphite, and the sealing performance of the motor is stronger.
No.9 Press-fitting of the Cylinder
After the oil cylinder is press-fitted, the sealed semi-finished motor is completed

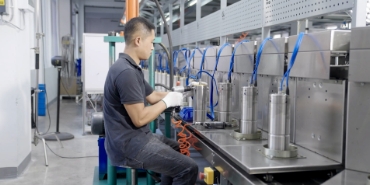

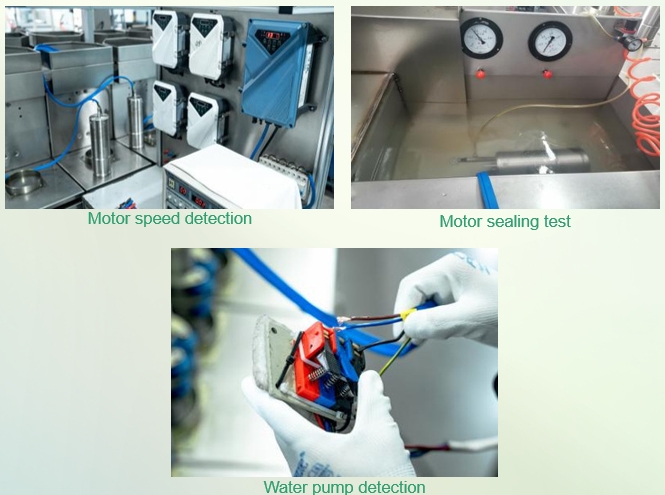

No.10 Motor Test
The installed motor will undergo power-on test and air tightness test to ensure the tightness and stability of the motor.

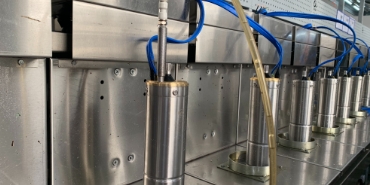

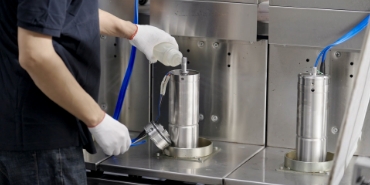

No.11 Oiling the Motor
After passing the inspection, the motor is vacuum filled with lubricating oil, and a high-quality motor is completed.
Solar Submersible Pump Services
Pre-sale Service
✔️24 hours online, response within 1 hour
✔️Provide complete solutions
✔️Support Distribution, OEM, ODM
Enforcing Contracts
✔️Standardized service process
✔️Professional product inspection before leaving the factory
✔️Provide order tracking and logistics tracking
After-sale Service
✔️2 years warranty; provide solutions within 24 hours
✔️Provide installation, maintenance and repair videos
✔️Online training available
Water pump assembly workshop

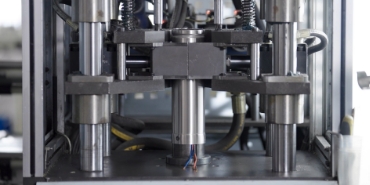

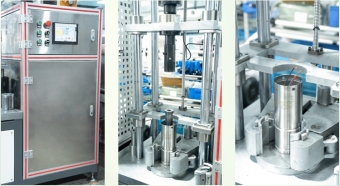

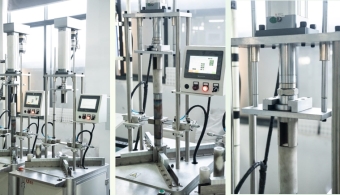

Stator Pressing Equipment
The automatic press is equipped with a high-precision distance sensor. According to the specific height requirements, the coil pressing distance parameters can be accurately set in the equipment operation interface. During the entire pressing process, the system will monitor and dynamically adjust key parameters such as pressure and displacement in real time to ensure that the pressing size of each coil can strictly meet the standards, effectively improving the consistency of product quality and improving the overall production efficiency of the product.

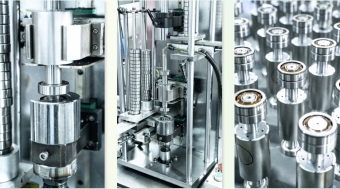

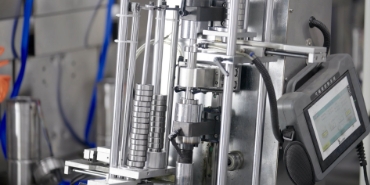

Magnetic Steel surface mounting machine
The parameters are set in the magnet surface mounting machine operation interface. The system will ensure that each magnet can be pressed into the rotor in strict accordance with the preset standards, effectively improving the consistency of product quality. At the same time, the automated operation process greatly reduces the manual intervention process and improves the overall production efficiency of the product.

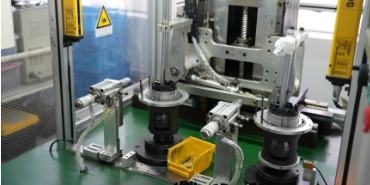

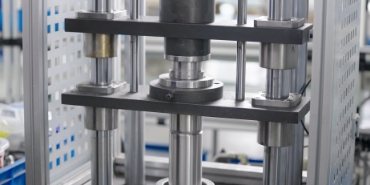

Bearing press machine
The bearing press machine is equipped with a distance sensing system. According to the specific installation height requirements, the bearing installation distance parameters can be accurately set on the equipment operation interface.
During the entire press process, the system will monitor and dynamically adjust key parameters such as pressure and distance in real time to ensure that the pressing dimensions of each bearing can strictly meet the preset standards, effectively improving the consistency of product quality.

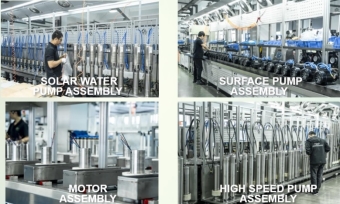

Water pump assembly line
The automated assembly line greatly improves the work efficiency of workers, reduces the error rate, and increases production, with annual production increasing by about 30%.
Seven production lines work simultaneously. The daily output of solar water pumps can reach 1,200 units.

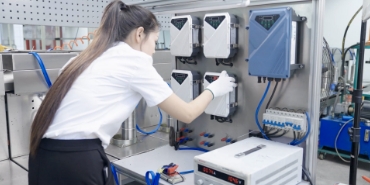

Water pump line test
Each pump is tested to prevent defects and ensure that the client's products are qualified, so as to maximize customer satisfaction.

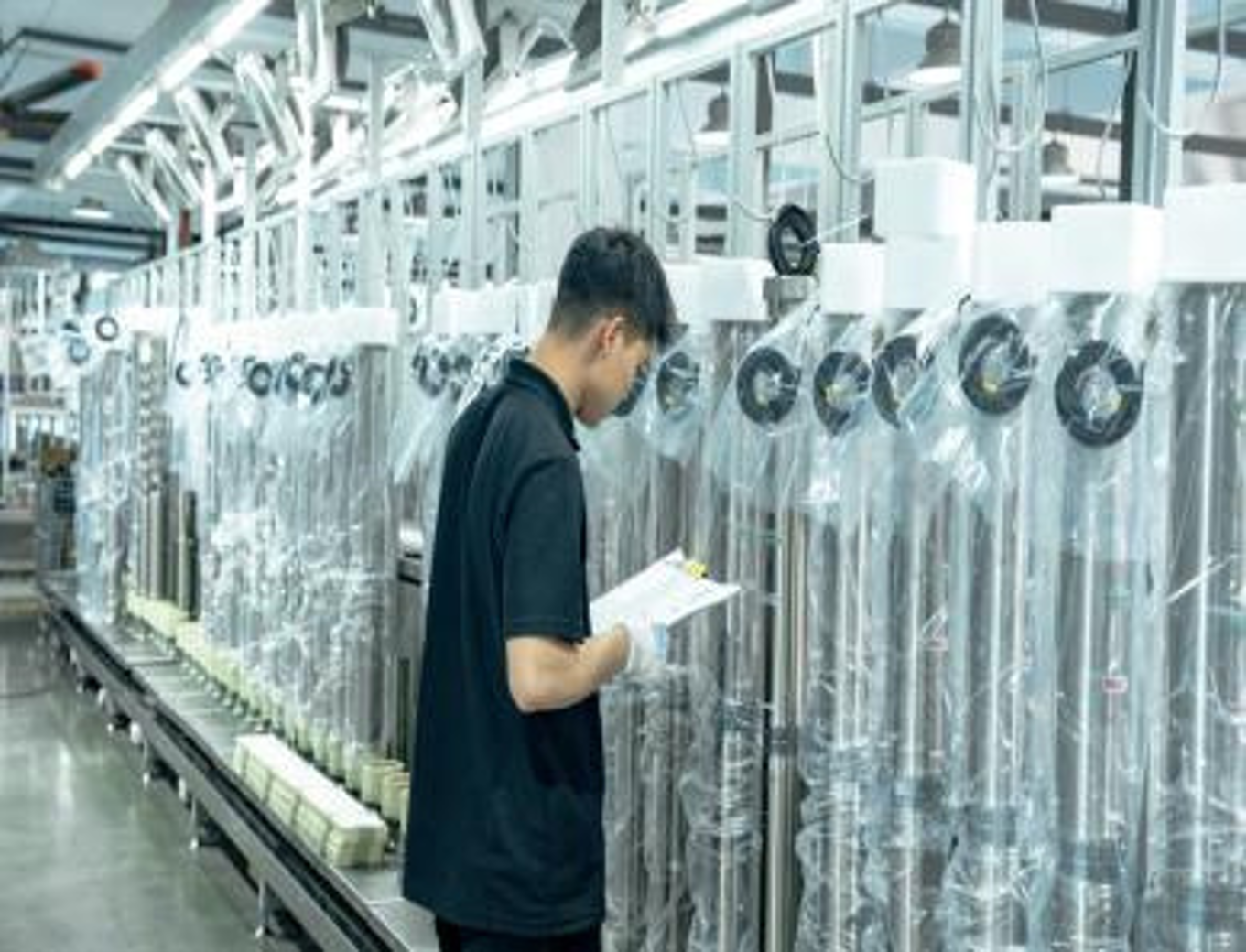

Pump order verification and inspection before packaging
Packaging inspection, order verification, taking photos for customers and other backup, assisting customers in factory inspection and product inspection
Controller production workshop

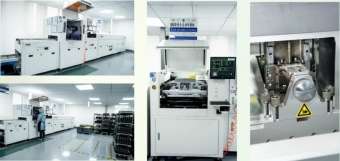

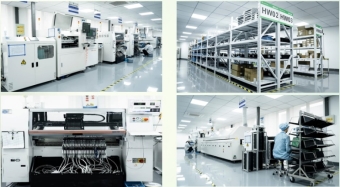

SMT circuit board production line
Imported brand fully automatic production line ensures the quality of circuit boards. Through highly automated equipment and precise control systems, fast and efficient patch operations are achieved. Compared with traditional manual soldering or insertion processes, SMT technology can greatly reduce manual intervention and increase production speed, thereby shortening the production cycle of products, reducing labor costs, and enabling companies to respond to market demand more flexibly and improve market competitiveness. The delivery period is stable and the delivery period is short. The controller quality control is strict, and the damage rate is less than 3‰.
PCBA coating line
The main functions include protecting circuit boards, enhancing mechanical strength, improving impedance stability, and preventing electrical short circuits.
1.Protect circuit boards (from moisture, dust, and corrosion). 2.Enhance mechanical strength. 3.Improve impedance stability. 4.Prevent electrical short circuits.

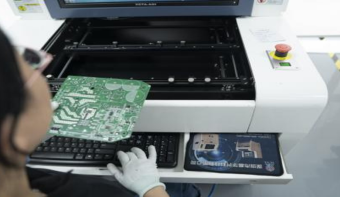

SPI AOI Inspection Equipment
SPI machines check the solder paste volume and uniformity of solder paste coating on PCB boards.
AOI machines scan and inspect PCBs to ensure the correct placement of all components.
Fully automatic inspection to avoid manual errors.

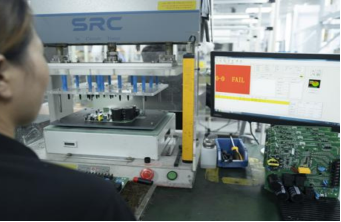

FCT&ICT Inspection Equipment
Each circuit board must undergo ICT testing to detect the defective rate and failure rate of components.
Each circuit board must be connected to a water pump for FCT testing to ensure the stability of product quality.
Each circuit board must undergo long-term high temperature aging testing to ensure the quality of the controller.

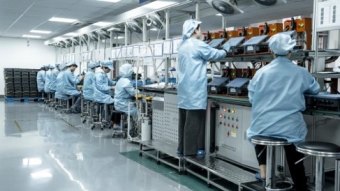

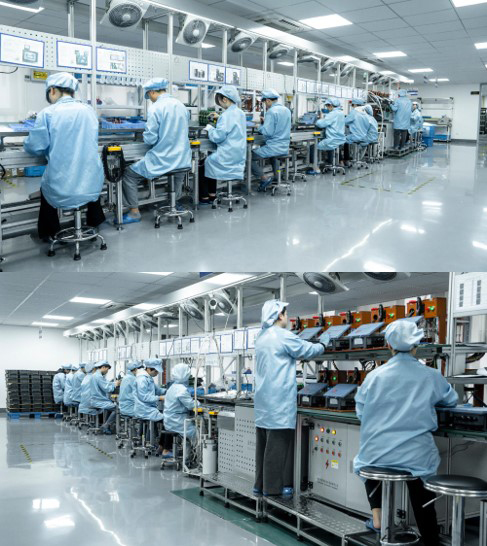

Controller assembly workshop
In the PCBA (Printed Circuit Board Assembly) manufacturing process, programming IC chips is crucial for integrating software functionality into hardware. This process involves embedding customized programs into the IC, a step that's fundamental to enabling the full range of an electronic device's capabilities.
Programming serves three key purposes:
Firmware Installation: Loading essential software that controls the chip's basic operations.
Hardware Enablement: Activating and initializing hardware components for seamless functionality.
Function Tailoring: Customizing the chip's capabilities to meet specific product requirements.
ECOCORE’s in - house developed controller, protected by exclusive software patents, represents a technological edge. When integrated into production lines, it significantly boosts assembly efficiency while minimizing errors, optimizing the overall manufacturing workflow.

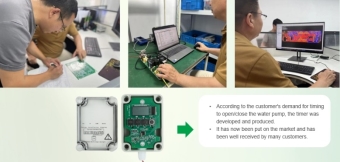

New product development
ECOCORE has a professional product R&D team that continuously develops new products, adds new product functions, and can quickly respond to R&D to meet the customized needs of different customers.
