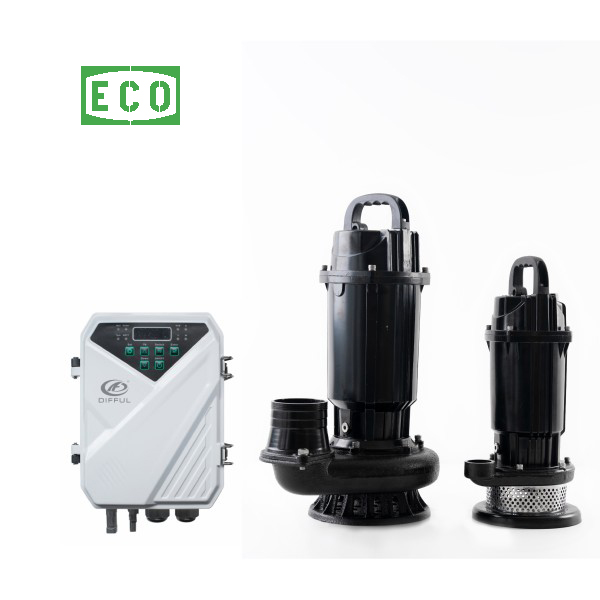

Large flow solar submersible pump for agricultural irrigation
Categories:DC SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:DQD
Type:solar submersible pump
Pump Body Material:aluminum
Package type:wooden case
Warranty:2 years
Certificate:CE, GS, RoHS
DC HIGH FLOW SOLAR SUBMERSIBLE PUMP

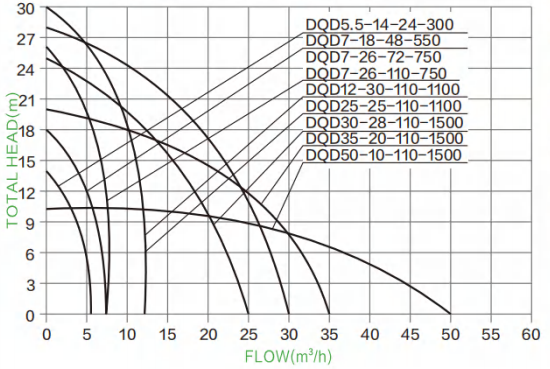

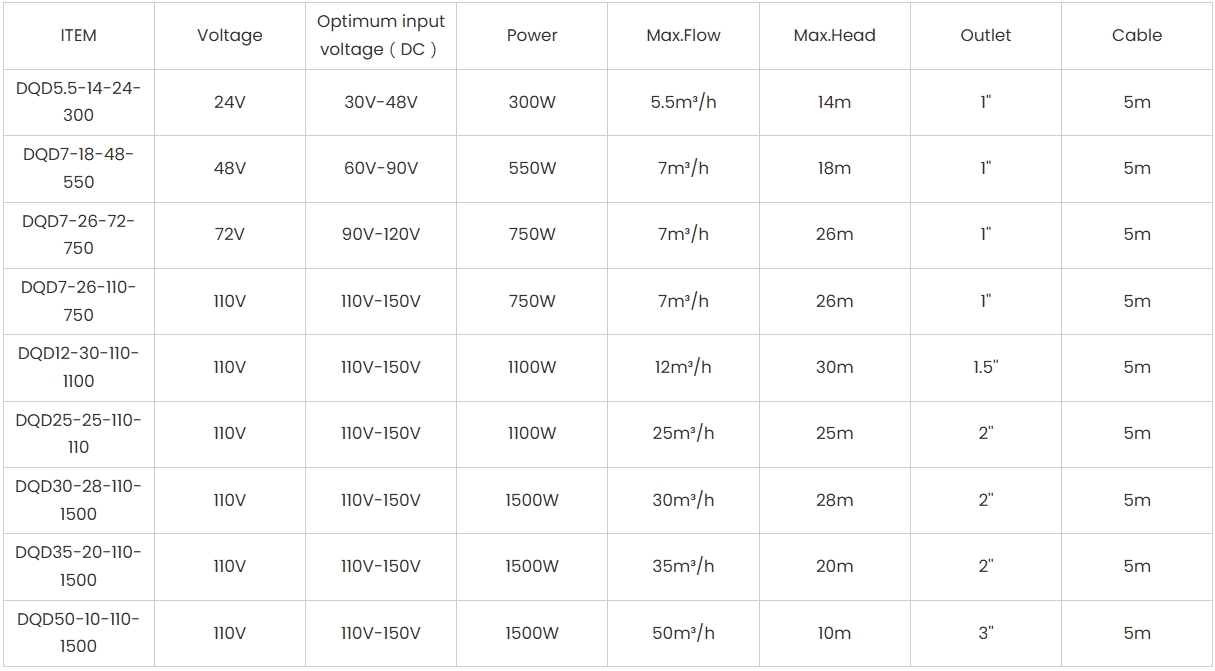

DC HIGH FLOW SOLAR SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.

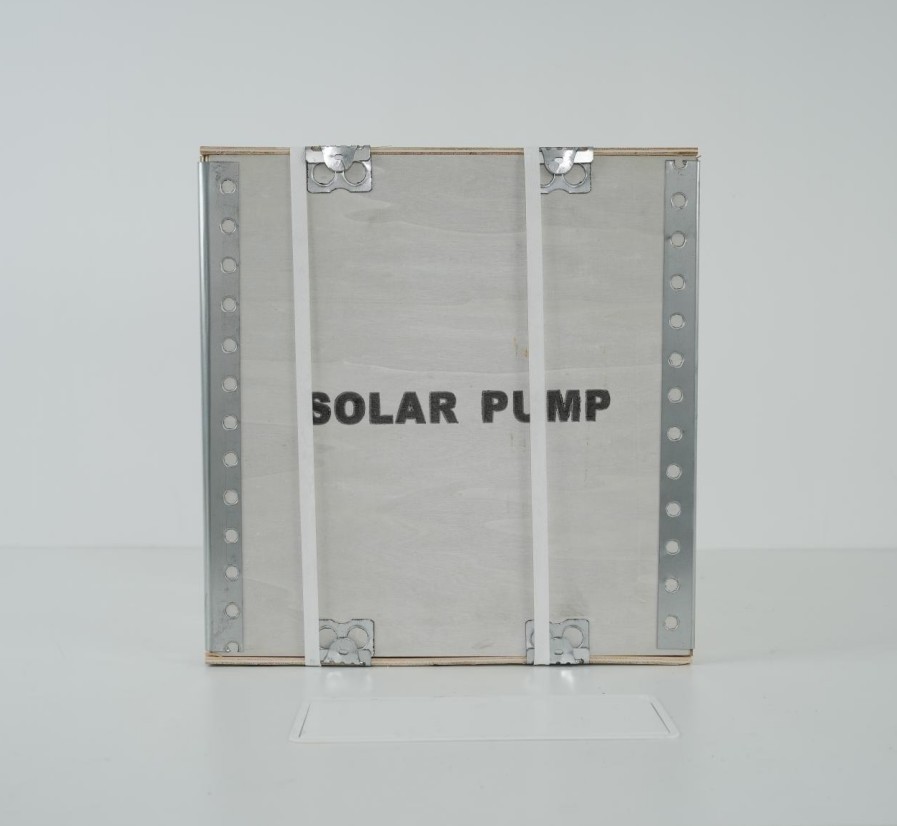

PRODUCT PACKAGING
We offer you: (package included)
1 x High flow solar submersible pump with a 5 meter cable
1 x DC pump controller with MPPT function

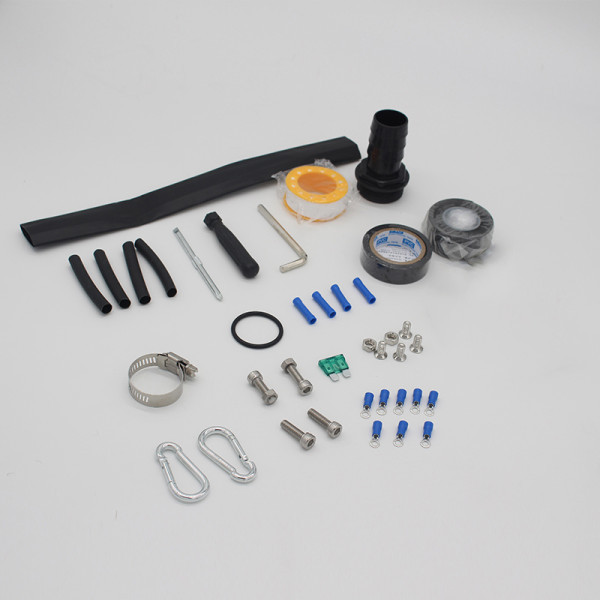

1 x Cable connection connector kit
1 x Connector kit for waterproofing
Items you will need to purchase yourself: (not included in the package)
Suitable solar panel.

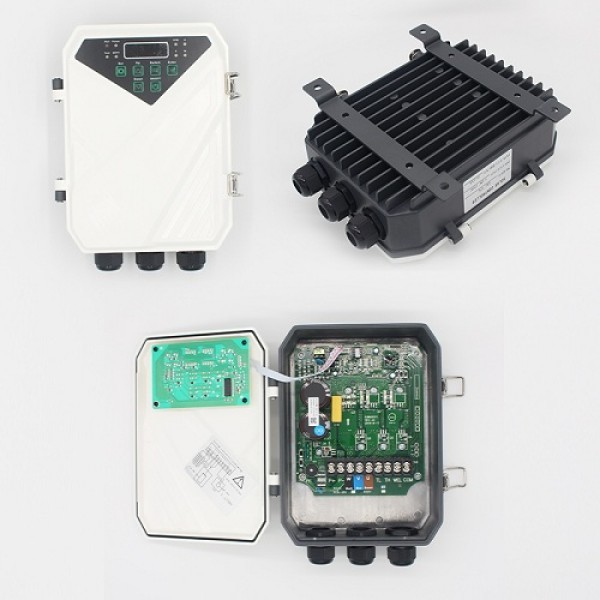

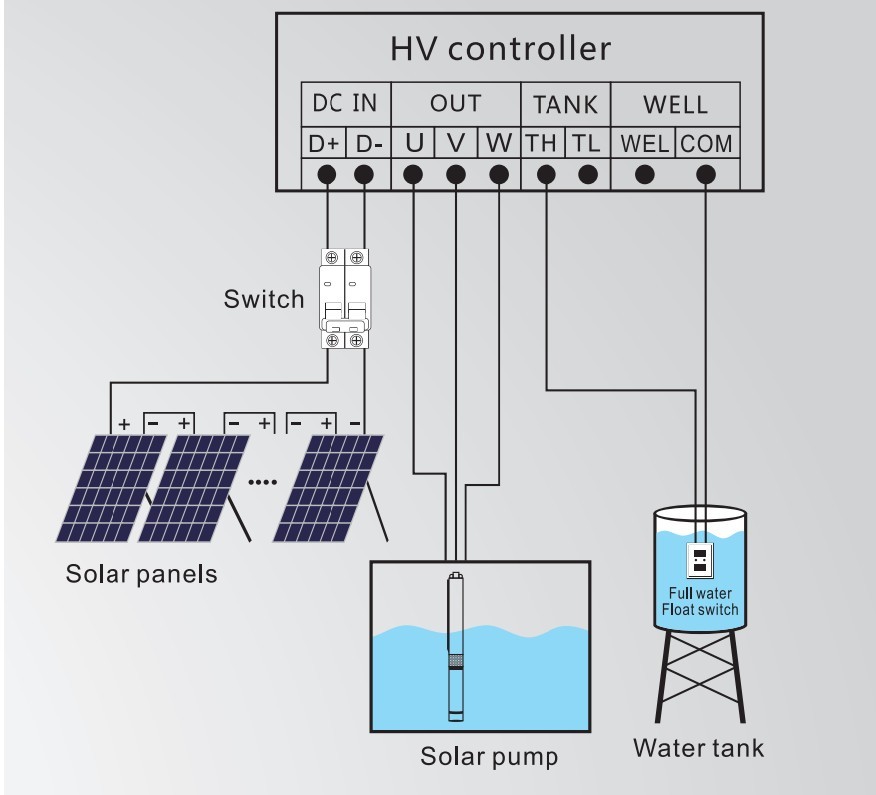

CONTROLLER INTERNAL WIRING DIAGRAM

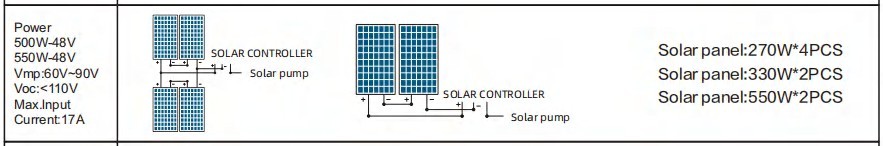

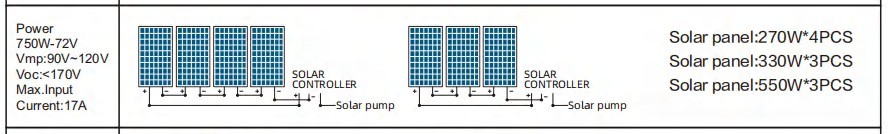

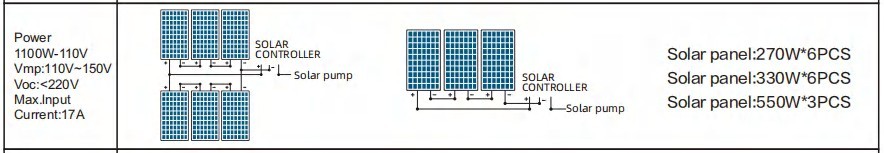

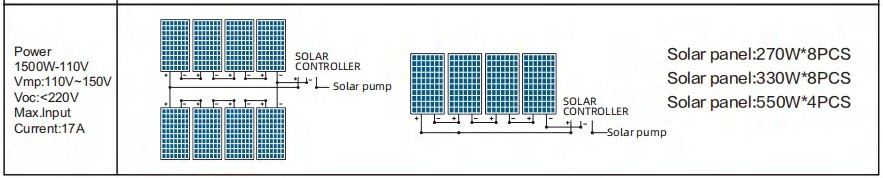

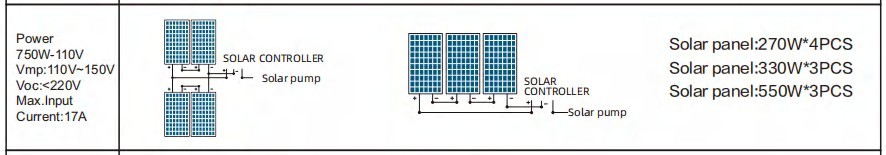

HOW TO CHOOSE SOLAR PANEL

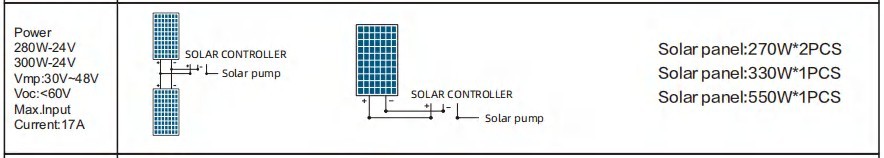

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DQD5.5-14-24-300 model matches the solar panel voltage between 30V～48V.
DQD5.5-14-24-300
DQD7-18-48-550
DQD7-26-72-750
DQD7-26-110-750
DQD12-30-110-1100
DQD25-25-110-1100
DQD30-28-110-1500
DQD35-20-110-1500
DQD50-10-110-1500
