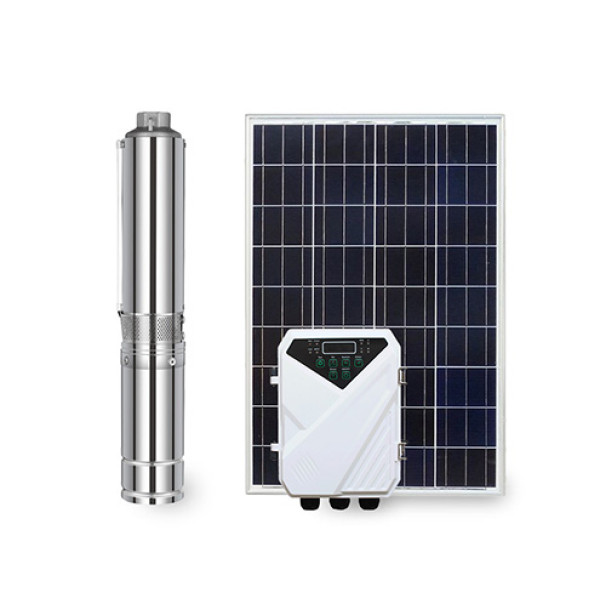

4inch solar submersible pump 1300W solar powered pump for irrigation dc solar pump manufacturer

Categories:DC SOLAR SUBMERSIBLE PUMP
Brand:ECOCORE
Model:4DPC
Type:4 inch solar pump with plastic impeller
Pump Body Material:Stainless steel
Outlet Material:Brass
impeller Material:Plastic
Package type:wooden case
Warranty:2 years
Certificate:CE, GS, RoHS

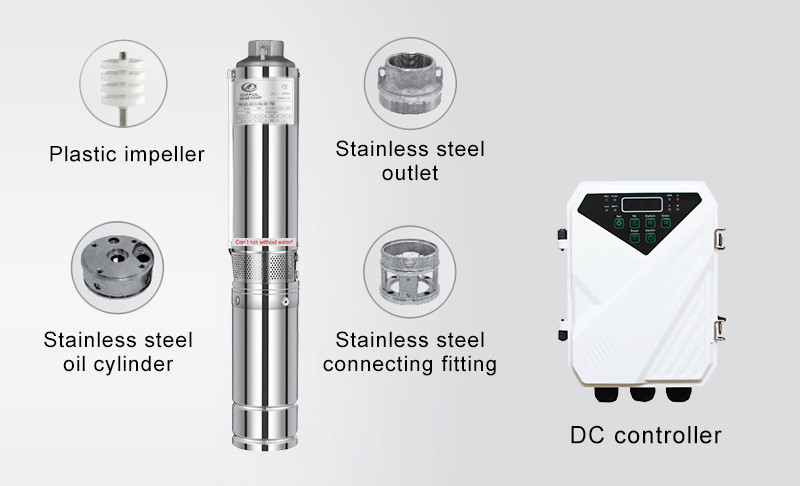

4 INCH DC BRUSHLESS SUBMERSIBLE SOLAR PUMP WITH PLASTIC IMPELLER

4-inch Solar submersible pump with plastic impeller: Large flow, suitable for irrigation, ranch, farms, etc.

 Permanent magnet DC brushless synchronous motor

 S/S outlet, oil cylinder, connection

 Plastic impeller

 MPPT Controller

4" PLASTIC IMPELLER SOLAR PUMP

Model	Power	Voltage	Max flow(m3/h)	Max head(m)	Outlet(inch)
4DPC4.5-40-48-500	500	48	4.5	40	1.25"
4DPC4.5-55-48-600	600	72	4.5	55	1.25"
4DPC4.5-55-72-600	600	72	4.5	55	1.25"
4DPC4.5-80-48-750	750	72	4.5	80	1.25"
4DPC4.5-80-72-750	750	72	4.5	80	1.25"
4DPC5-105-72-1100	1100	72	5	105	1.25"
4DPC5-105-110-1100	1100	110	5	105	1.25"
4DPC6-42-48-600	600	48	6	42	1.25"
4DPC6-42-72-600	600	72	6	42	1.25"
4DPC6-56-48-750	750	48	6	56	1.25"
4DPC6-56-72-750	750	72	6	56	1.25"
4DPC6.5-86-72-1100	1100	72	6.5	84	1.25"
4DPC6.5-86-110-1100	1100	110	6.5	84	1.25"
4DPC6.5-112-110-1300	1300	110	6.5	112	1.25"
4DPC6.5-135-110-1500	1500	110	6.5	135	1.25"
4DPC9-45-72-750	750	72	9	45	2"
4DPC9-45-110-750	750	110	9	45	2"
4DPC9-58-110-1100	1100	110	9	58	2"
4DPC9-71-110-1300	1300	110	9	71	2"
4DPC9-85-110-1500	1500	110	9	85	2"
4DPC13-36-72-750	750	72	13	36	2"
4DPC13-36-110-750	750	110	13	36	2"
4DPC13-49-110-1100	1100	110	13	49	2"
4DPC13-54-110-1300	1300	110	13	54	2"
4DPC13-60-110-1500	1500	110	13	60	2"
4DPC17-48-110-1500	1300	110	17	48	2"

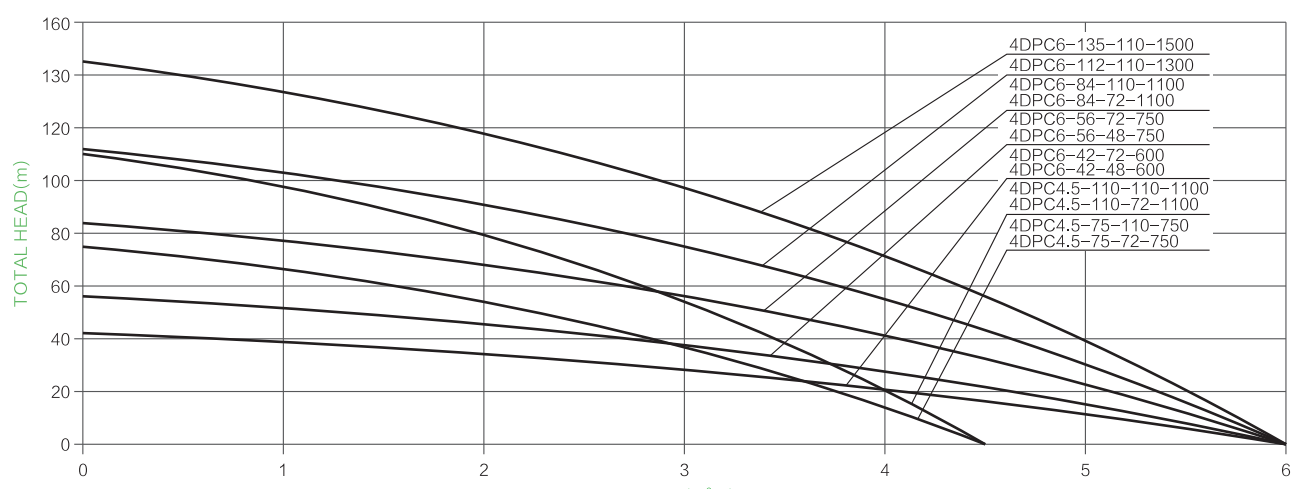

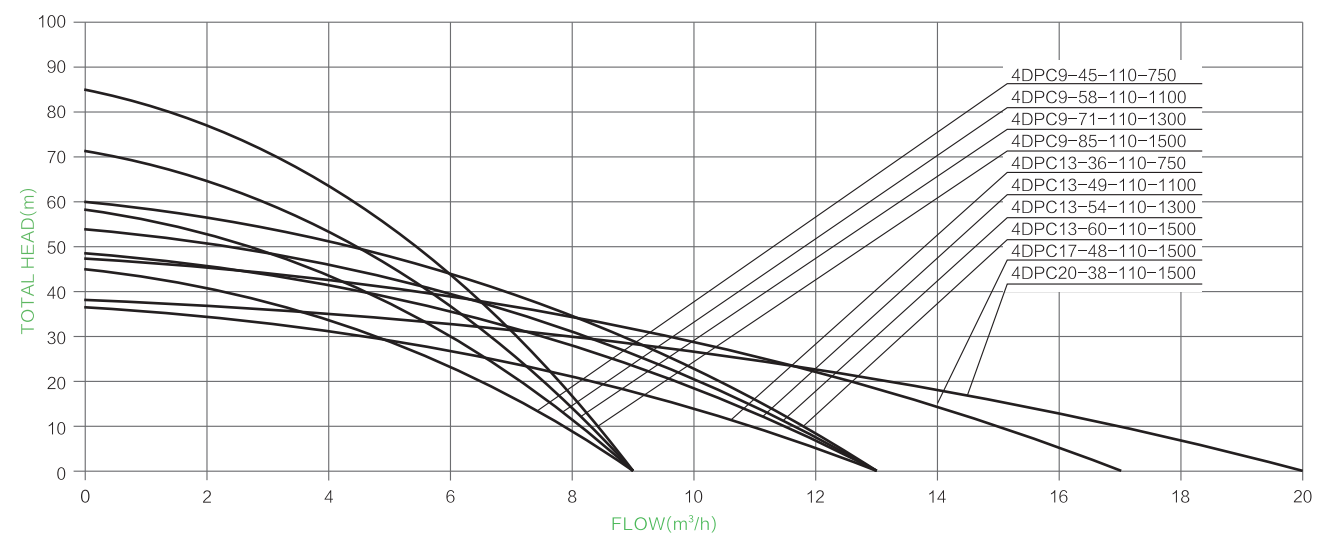

4 INCH PLASTIC IMPELLER SOLAR PUMP PARAMETER

HOW TO CHOOSE A PUMP

1.Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

2.Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according to different folw and prices.

PRODUCT PACKAGING

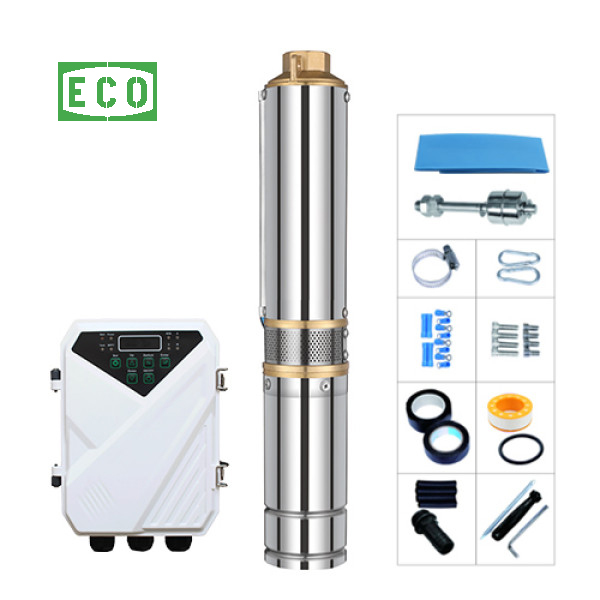

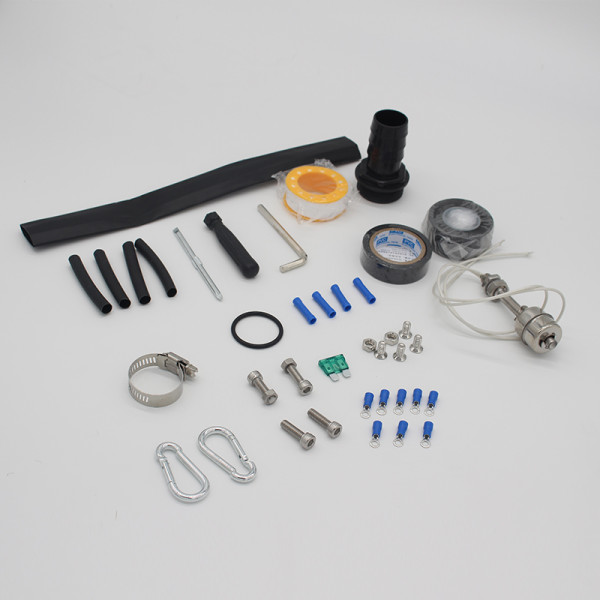

What we get for you:(Package Include)

 1 x 4inch DC solar Plastic impeller pump with one 2m cable

 1 x Pump controler with MPPT function

 1 x Stainless steel float swith (sensor for tank)

 1 x Pump outlet joint connector

 1 x Splice kit for cable join

 1 x Splice kit for waterproof

What You need to get by yourself:(Package DO NOT Include)

 Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

 Poly pipe from pump to water tank. ( recommend 1.25inch/2inch or over diameter poly pipe)

 Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

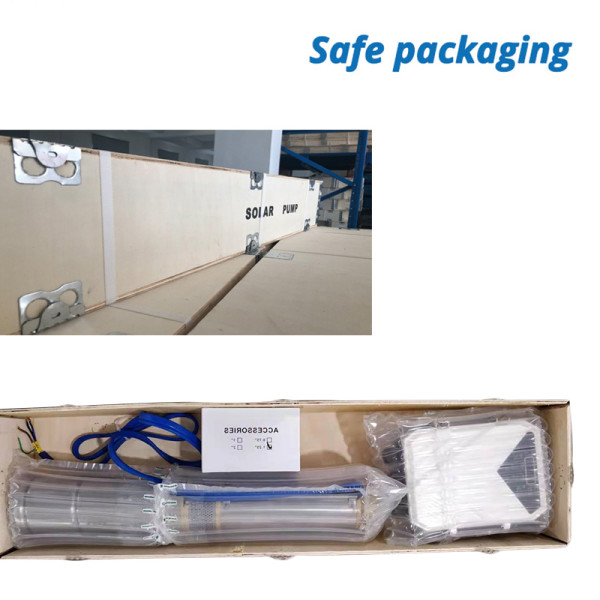

PACKAGING PROCESS

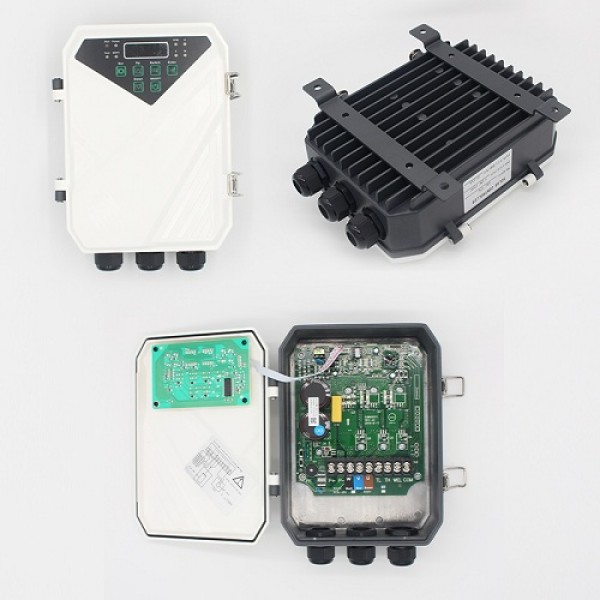

CONTROLLER INTERNAL WIRING DIAGRAM

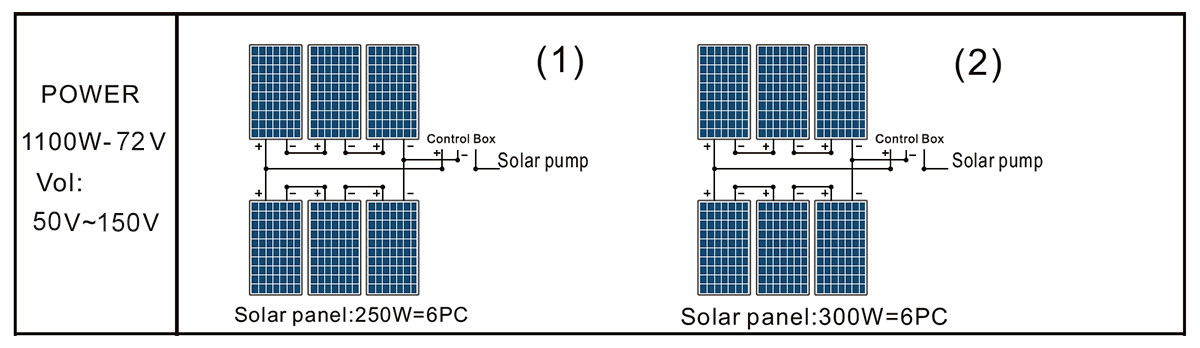

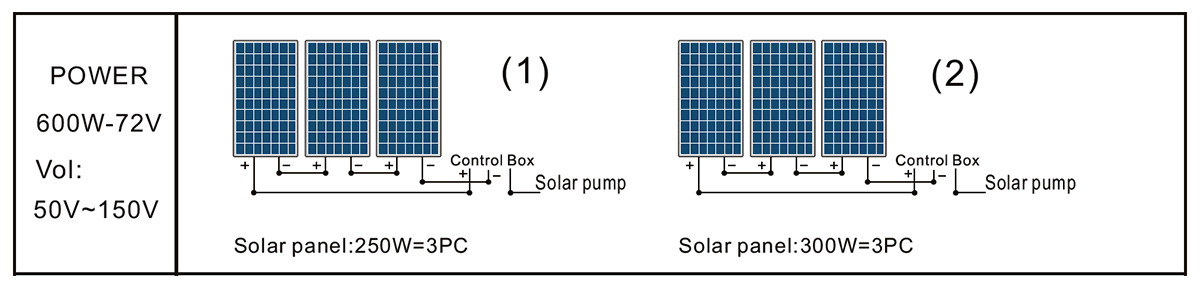

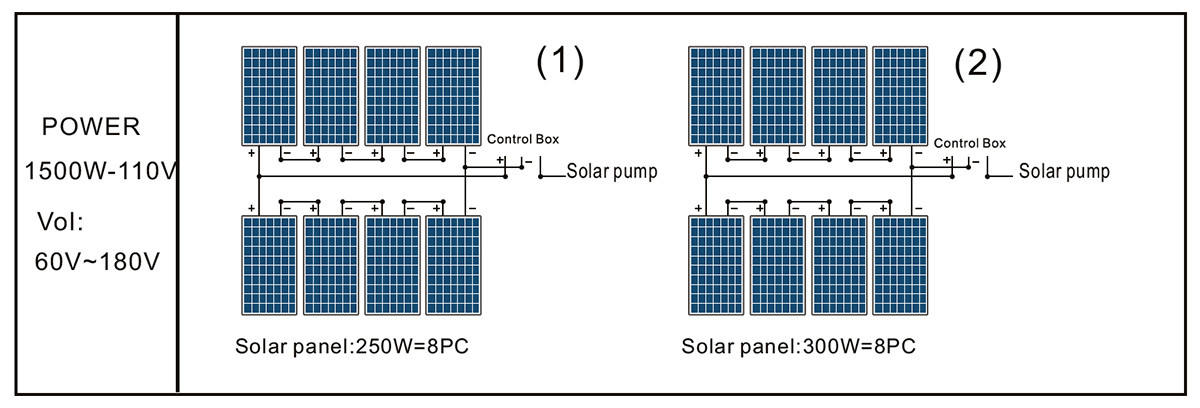

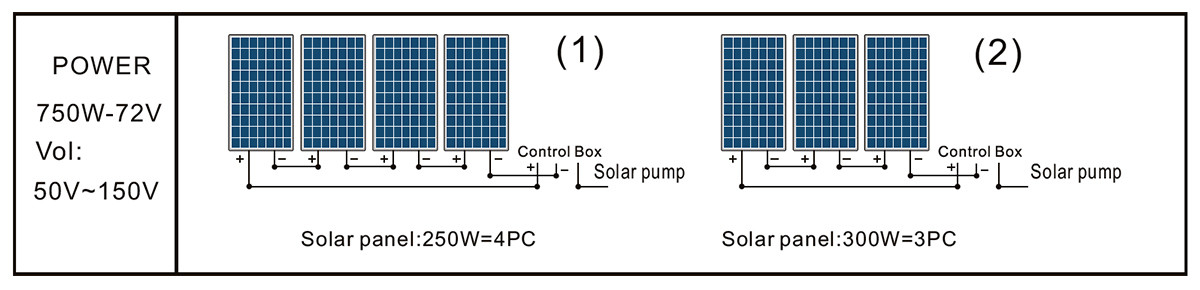

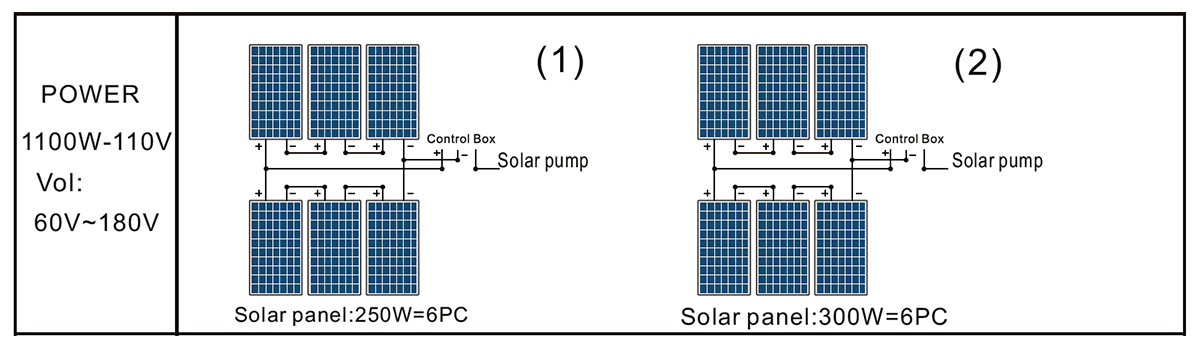

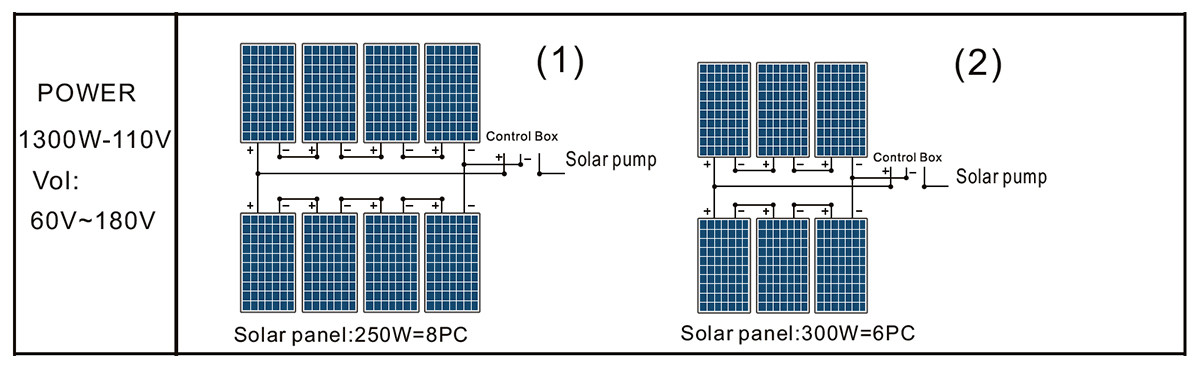

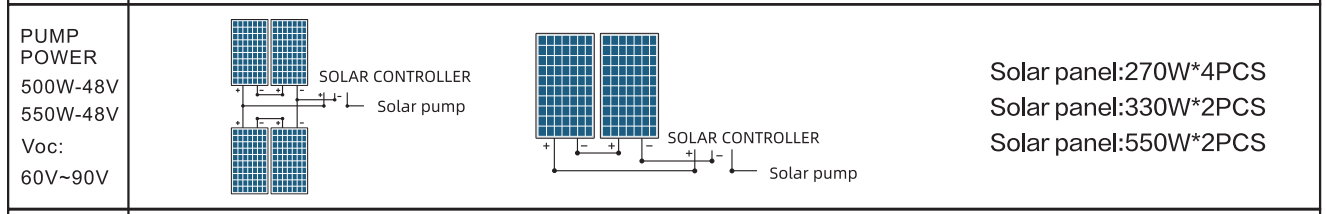

HOW TO CHOOSE SOLAR PANEL

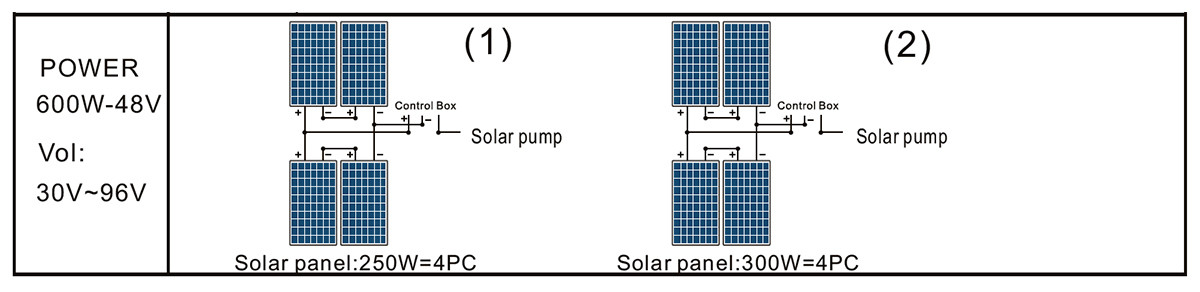

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DPC6-42-48-600 model matches the solar panel voltage between 30V～96V.

4DPC4.5-40-48-500
