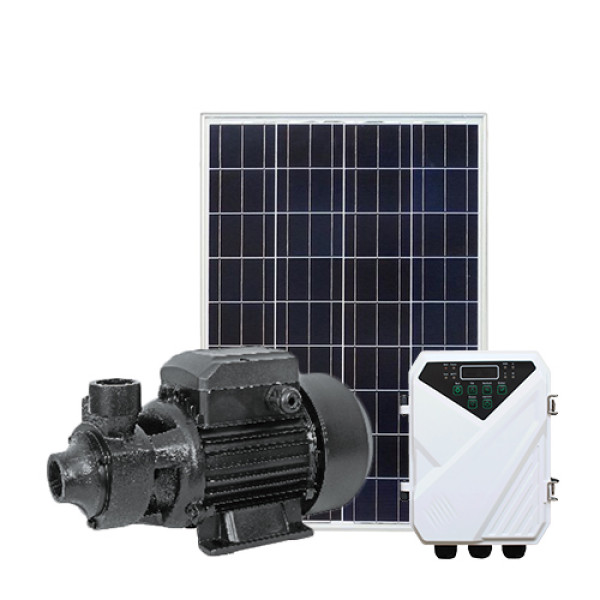

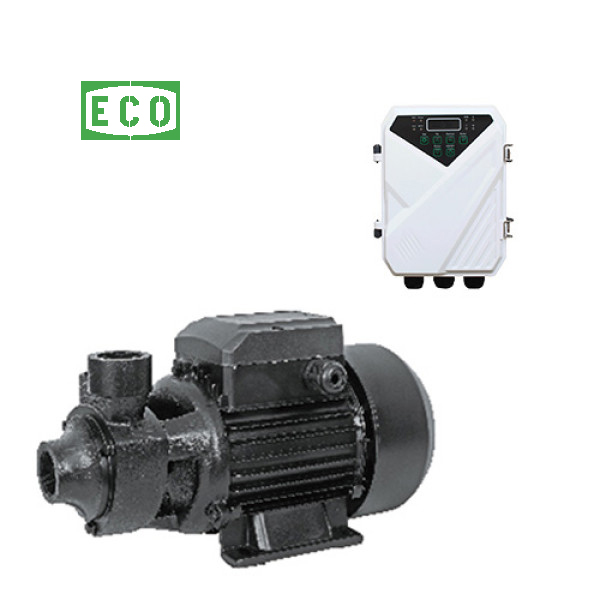

DC peripheral surface solar pump for house using 750W vortex solar pump
Categories:DC SURFACE SOLAR PUMP
Brand:ECOCORE
Model:DQB
Type:surface solar vortex pump
Material:Stainless steel
Application:domestic water supply, small area irrigation
Voltage:DC
Package type:wooden case
Warranty:2Year
Standard or nonstandard:Standard
Certificate:CE, GS, RoHS
SURFACE SOLAR CENTRIFUGAL PUMP PARAMETE
Model | Power | Voltage | Max flow (m3/h) | Max head (m) | Outlet (inch) |
DQB2.0-25-24-210 | 210 | 24 | 2 | 25 | 1" |
DQB2.0-30-24-280 | 280 | 24 | 2 | 30 | 1" |
DQB3.0-50-48-550 | 550 | 48 | 3 | 50 | 1" |
DQB3.0-65-72-750 | 750 | 72 | 3 | 65 | 1" |

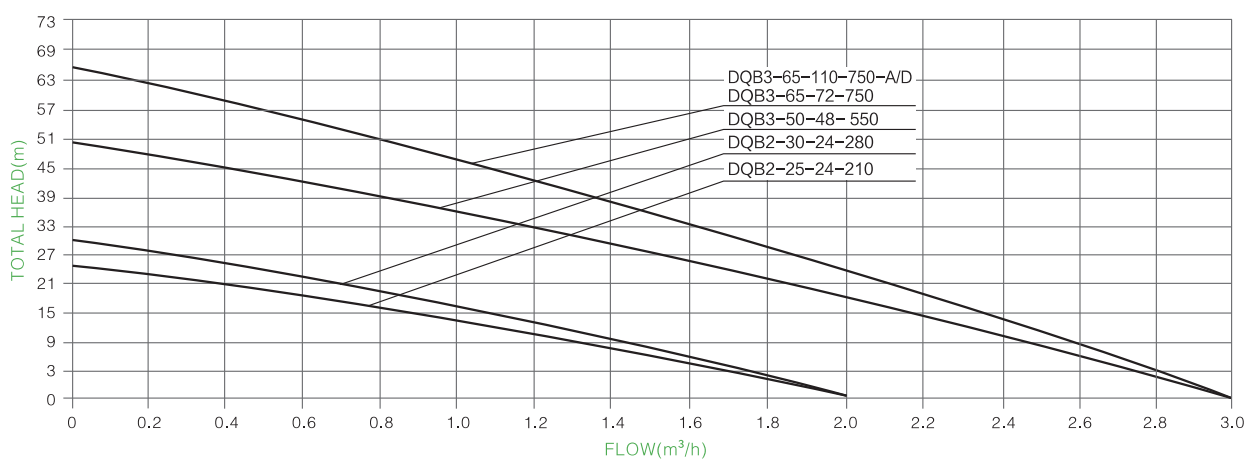

SURFACE SOLAR CENTRIFUGAL PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.

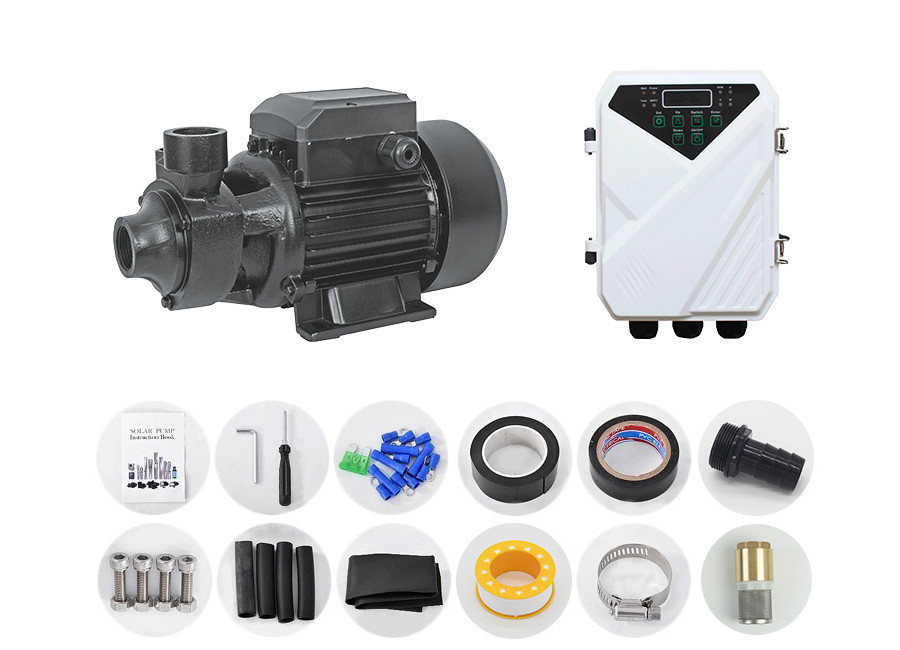

PRODUCT PACKAGING

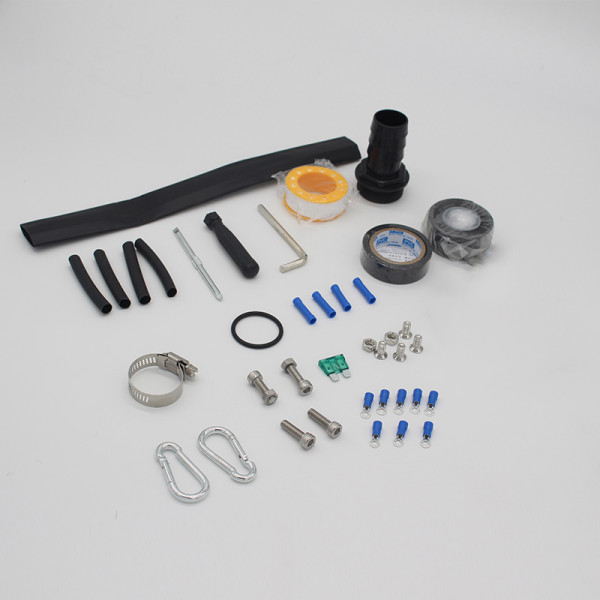

What we get for you:(Package Include)
1 x surface solar centrifugal pump with one 2m cable

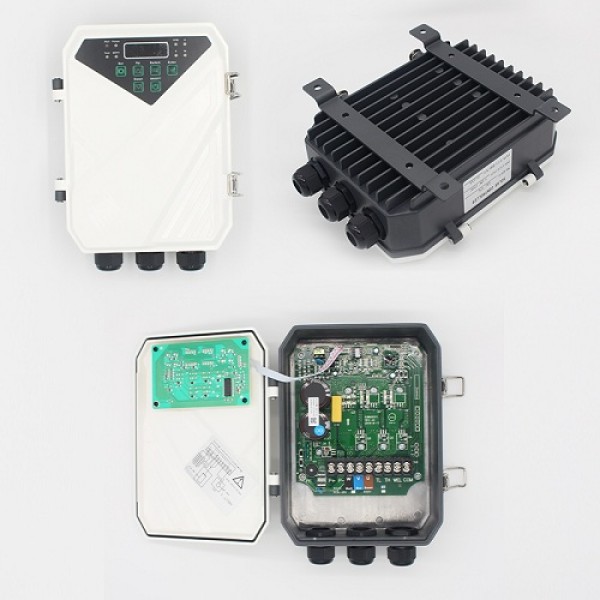

1 x Pump controler with MPPT function
1 x Pump outlet joint connector
1 x Splice kit for cable join
1 x Splice kit for waterproof
1 x Check valve
1 x Product Manual
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.
Poly pipe from pump to water tank. ( Choose according to outlet size)
Wire power cable (2 wires plus earth，1.5 square).

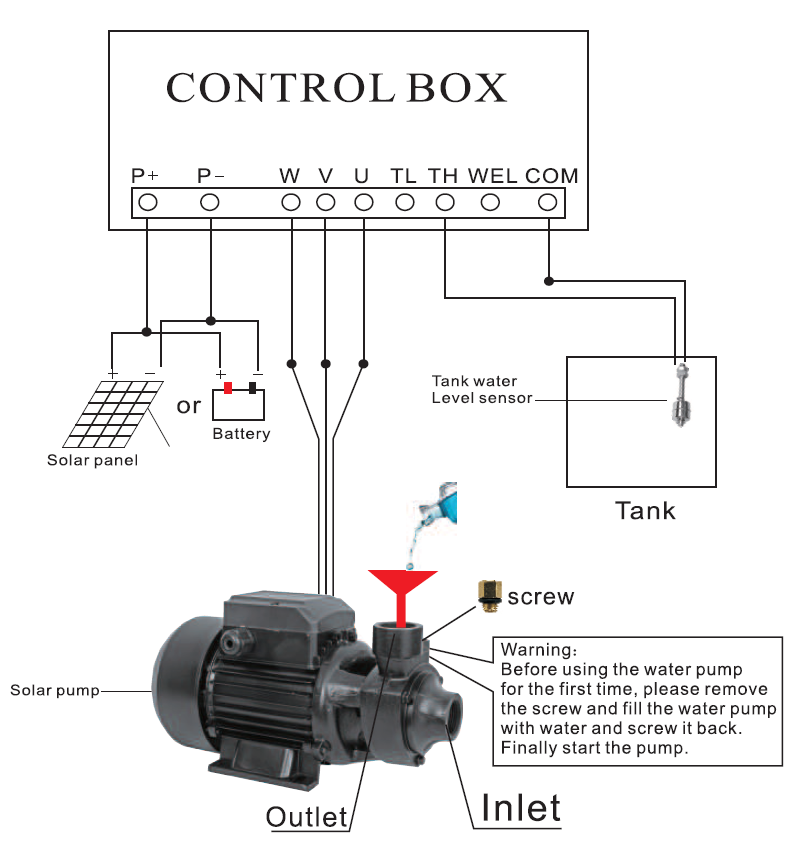

CONTROLLER INTERNAL WIRING DIAGRAM
HOW TO CHOOSE SOLAR PANEL

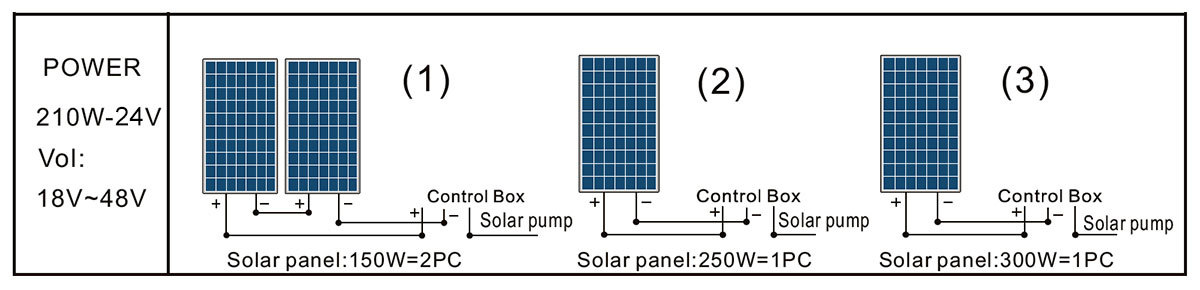

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DQB2.0-25-24-210 model matches the solar panel voltage between 18V～48V.
DQB2.0-25-24-210

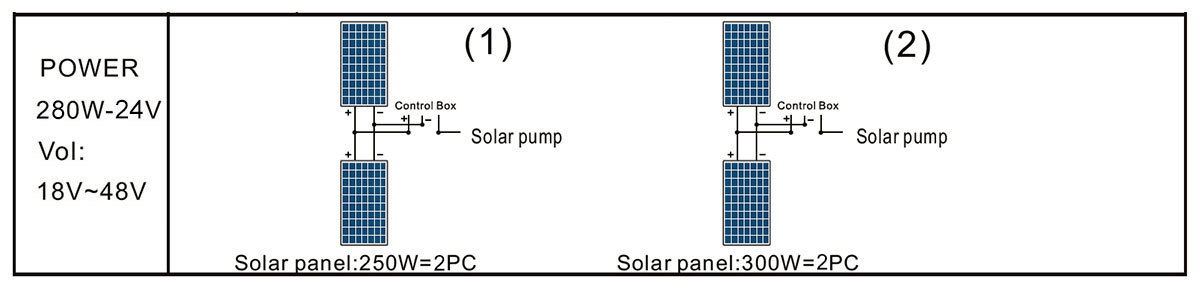

DQB2.0-30-24-280

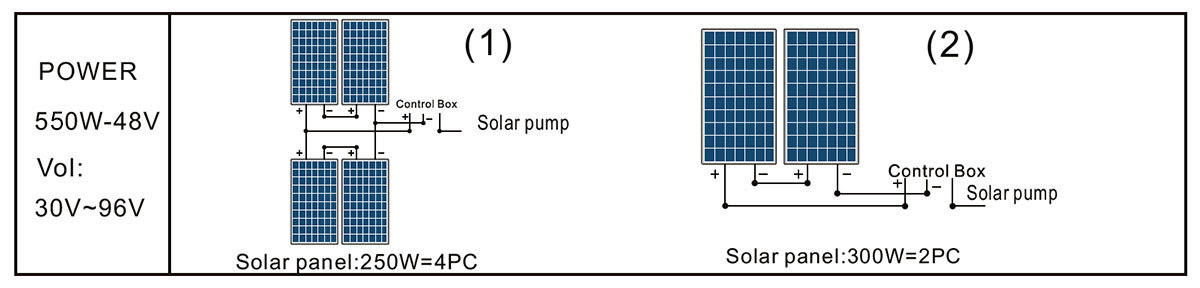

DQB3.0-50-48-550
DQB3.0-65-72-750
