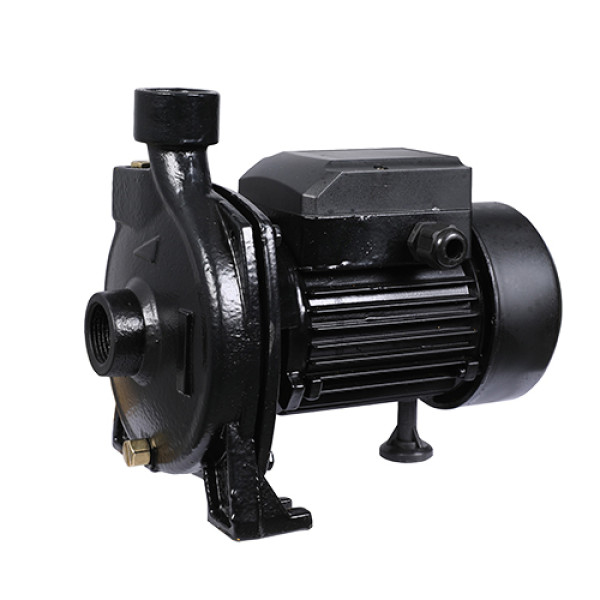

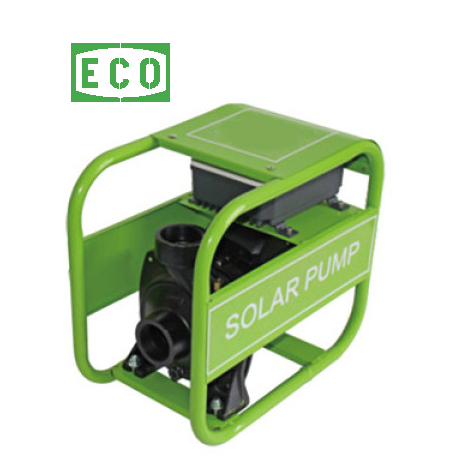

Centrifugal surface pump with solar power DC 72V domestic solar pump
Categories:DC SURFACE SOLAR PUMP
Brand:ECOCORE
Model:DCPM
Type:surface solar centrifugal pump
Material:Stainless steel
Application:domestic water supply,irrigation
Voltage:DC 72V
Package type:wooden case
Warranty:2 Year
Standard or nonstandard:Standard
Certificate:CE, GS, RoHS
SURFACE SOLAR CENTRIFUGAL PUMP PARAMETE
Model | Power | Voltage | Max flow (m3/h) | Max head (m) | Outlet (inch) |
DCPM6-24-48-550 | 550 | 48 | 6 | 24 | 1" |
DCPM15-14-48-550 | 550 | 48 | 15 | 14 | 1.5" |
DCPM21-14-72-750 | 750 | 72 | 21 | 14 | 2" |
DCPM26-15-72-1100 | 1100 | 72 | 26 | 15 | 2" |
DCPM27-21-110-1500 | 1500 | 110 | 27 | 21 | 2" |
DCPM50-17-110-1500 | 1500 | 110 | 50 | 17 | 3" |

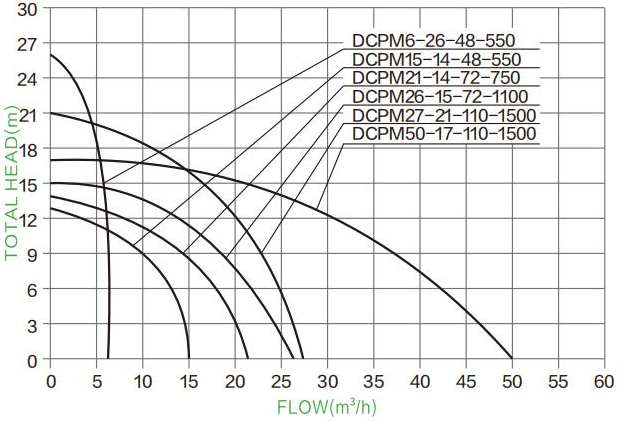

SURFACE SOLAR CENTRIFUGAL PUMP PARAMETER
HOW TO CHOOSE A PUMP
1.Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.

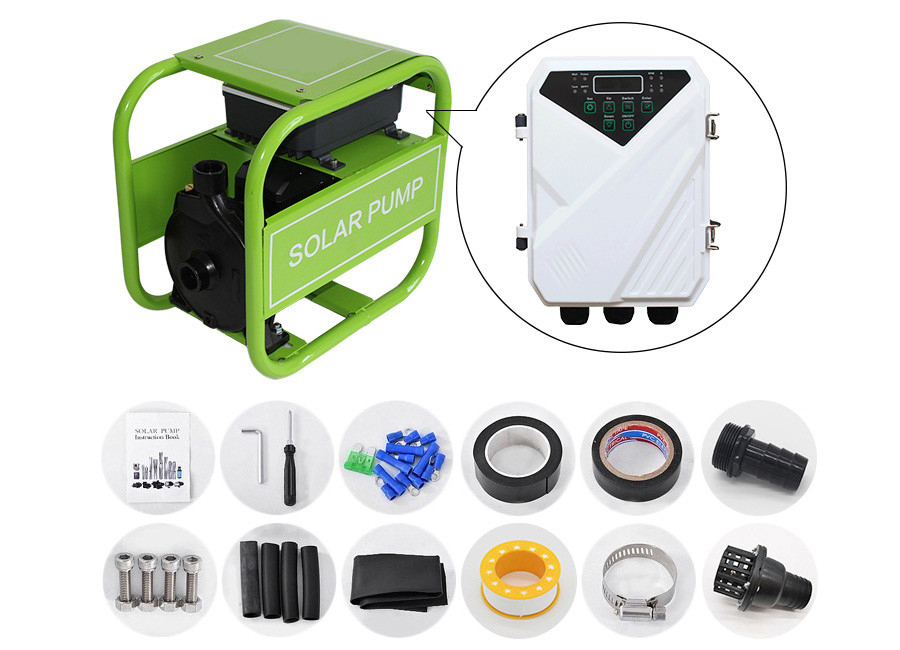

PRODUCT PACKAGING

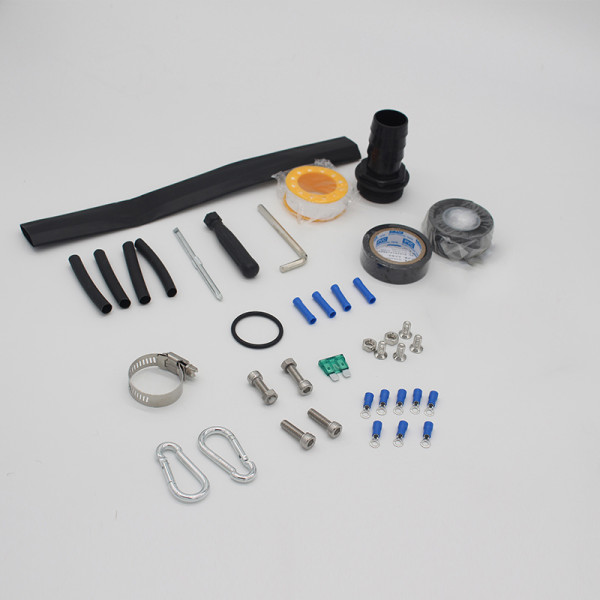

What we get for you:(Package Include)
1 x surface solar centrifugal pump with one 0.8m cable

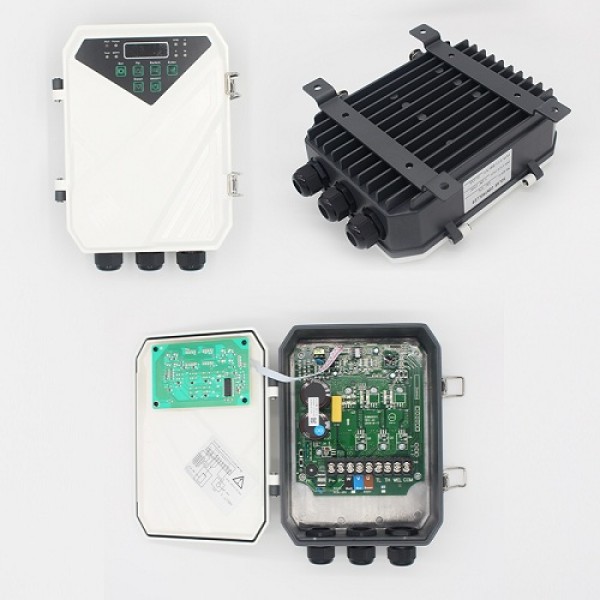

1 x Pump controler with MPPT function
1 x Pump outlet joint connector
1 x Splice kit for cable join

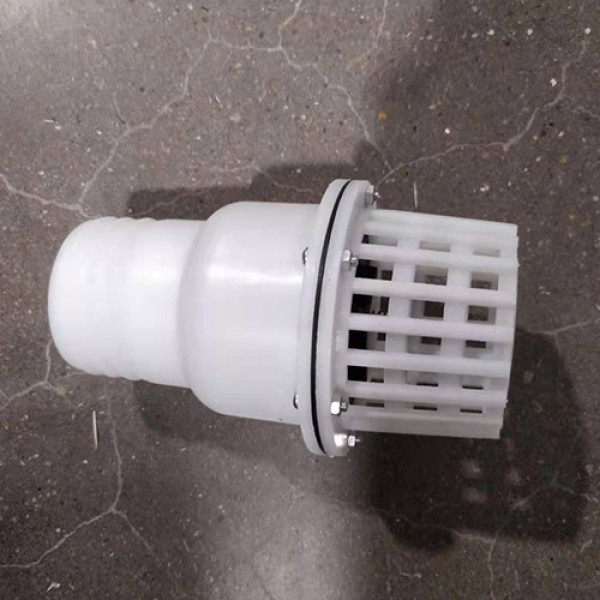

1 x Check valve
1 x Product Manual
What You need to get by yourself:(Package DO NOT Include)
Suitable solar panels. There’re some suggestions in the instruction book.
Poly pipe from pump to water tank. ( Choose according to outlet size)
Wire power cable (2 wires plus earth，1.5 square).
CONTROLLER INTERNAL WIRING DIAGRAM

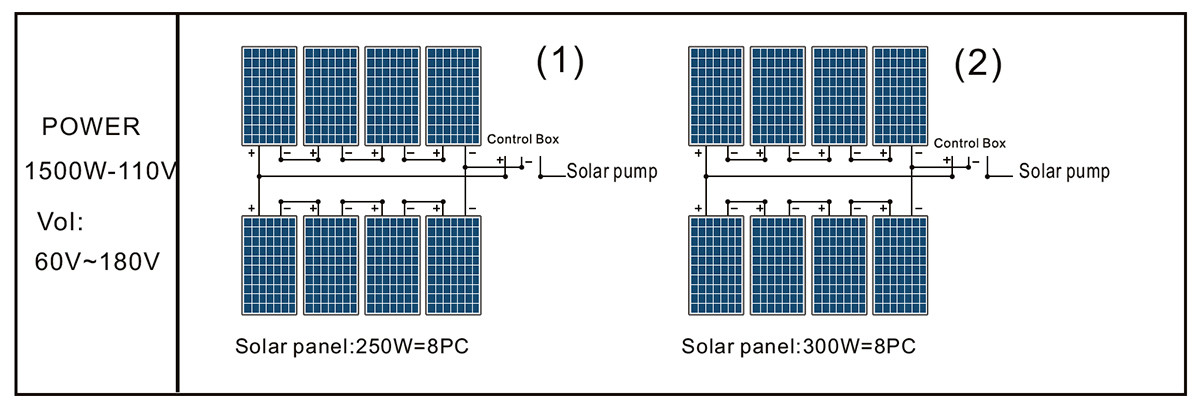

HOW TO CHOOSE SOLAR PANEL

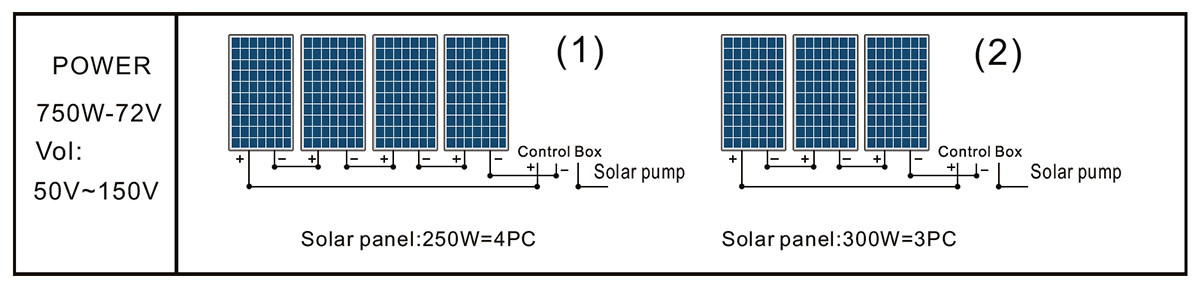

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DCPM21-14-72-750 model matches the solar panel voltage between 50V～150V.

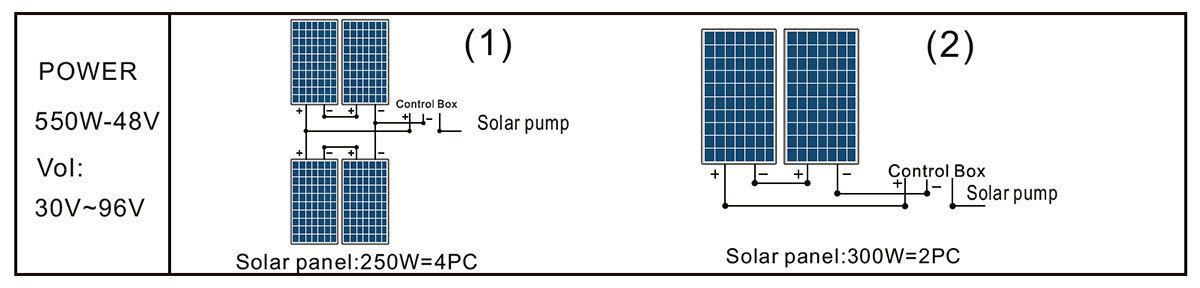

DCPM6-24-48-550
DCPM15-14-48-550
DCPM21-14-72-750

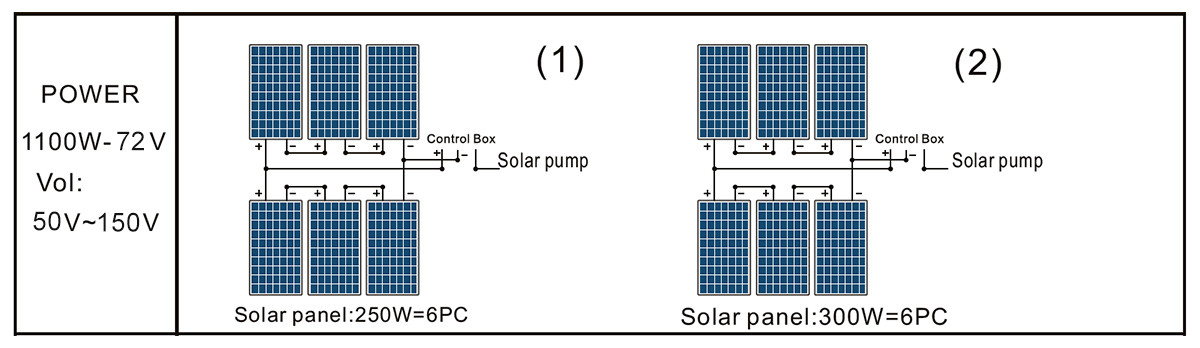

DCPM26-15-72-1100
DCPM45-17-110-1500
